Encoder
ENC2 Cyclic Position
Description

This function block is used on cyclic positioning applications where there is a requirement to control movement between equally spaced locations on a fixed path. Positioning is determined using an Internal Count value accumulated from pulses on the associated encoder channel. At the end of the cycle (as determined by the Cycle Length or an external trigger), the accumulated count is reset without the loss of any encoder pulses. The following graphic shows a typical cyclic positioning scheme with important control terms highlighted:

cyclic_app

Both the Internal Count and Cycle Length are internally stored as a 64-bit numbers which increment (or decrement) with each transition of the encoder channel depending on the direction of rotation (i.e., the actual count for one revolution of the encoder will be four times the Pulses Per Revolution of the encoder).

Availability
  • Available only in the dw2xx series products
  • Requires library: Encoder Control (option -11)
  • Requires: Dual Encoder
  • Singleton function block
  • Firmware versions 0x2015 and later

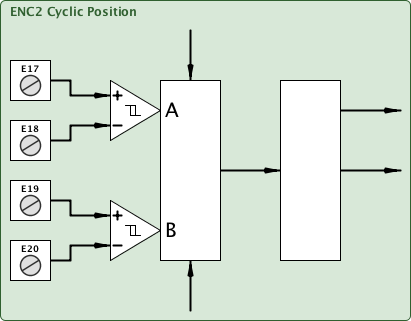

savvy-SFD Graphic enc2p5c

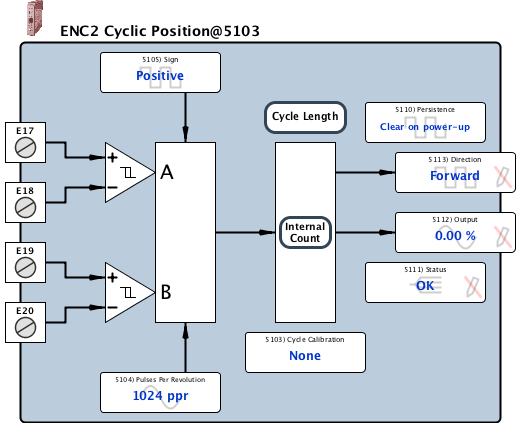

Graphic with Parameters enc2p5c

Parameters

Cycle Calibration Internal Parameter, Read-write, Optional Function Block Association (signed 16-bit integer)

This parameter is used to associate a Cyclic Position function block with the appropriate Cycle Calibrator function block. If set to None, the Zero Count location must be manually set and the Cycle Length must be entered manually into the four 16-bit registers.

If associated with either a Cycle Calibrator Basic or a Cycle Calibrator function block, the Internal Count zero location and the Cycle Length value can be externally manipulated making calibration and maintenance simpler while preventing long term accumulated error due to mechanical limitations.


Pulses Per Revolution Input, Read-write, Analog (signed 16-bit integer)
1 ppr to 30000 ppr

For the Cyclic Position function block, the Pulses Per Revolution (PPR) parameter is only used to calibrate an ENC Position Monitor function block.

Usually, this parameter is easily determined from the encoder's model number and is typically a power of 2 (e.g., 210 = 1024, 211 = 2048, or 2 12 = 4096). Generally, the higher the PPR, the more precise motion profile that can be achieved.


Sign Input, Read-write, Boolean (signed 16-bit integer)

The Sign parameter is used in conjunction with the encoder wiring (A with respect to B channel) to determine the count direction.

Behavior of the 64-bit Internal Count is defined below:

SignDirectionInternal Count
PositiveForwardIncrements
PositiveReverseDecrements
NegativeForwardDecrements
NegativeReverseIncrements

The Sign parameter can be controlled by logic to change the behavior of the count which directly affects the Output parameter.


0 = Positive
1 = Negative
Count 0 Internal Parameter, Read-only, Hexadecimal (unsigned 16-bit integer)
0 to 65535

Least significant 16-bits of the current 64-bit Internal Count which reflects the actual position with respect to the Cycle Zero position. Concatenate the hexadecimal values to determine the total count.

Internal Count = Count 3 | Count 2 | Count 1 | Count 0

For example, 0x0000 0x0BA8 0x9DE7 0x3694 = 12,818,831,586,964.


Count 1 Internal Parameter, Read-only, Hexadecimal (unsigned 16-bit integer)
0 to 65535

Most, least significant 16-bits of the current 64-bit Internal Count which reflects the actual position with respect to the Cycle Zero position. Concatenate the hexadecimal values to determine the total count.

Internal Count = Count 3 | Count 2 | Count 1 | Count 0

For example, 0x0000 0x0BA8 0x9DE7 0x3694 = 12,818,831,586,964.


Count 2 Internal Parameter, Read-only, Hexadecimal (unsigned 16-bit integer)
0 to 65535

Least, most significant 16-bits of the current 64-bit Internal Count which reflects the actual position with respect to the Cycle Zero position. Concatenate the hexadecimal values to determine the total count.

Internal Count = Count 3 | Count 2 | Count 1 | Count 0

For example, 0x0000 0x0BA8 0x9DE7 0x3694 = 12,818,831,586,964.


Count 3 Internal Parameter, Read-only, Hexadecimal (unsigned 16-bit integer)
0 to 65535

Most significant 16-bits of the current 64-bit Internal Count which reflects the actual position with respect to the Cycle Zero position. Concatenate the hexadecimal values to determine the total count.

Internal Count = Count 3 | Count 2 | Count 1 | Count 0

For example, 0x0000 0x0BA8 0x9DE7 0x3694 = 12,818,831,586,964.


Persistence Internal Parameter, Read-write, Boolean (signed 16-bit integer)

The Persistence parameter defines the behavior of the 64-bit Internal Count when the module is powered down. By default the Internal Count is reset to set to Clear on power-up. If you would like the value to be stored at power down, change to Persistent.


0 = Clear on power-up
1 = Persistent
Status Internal Parameter, Read-only, Enumerated (signed 16-bit integer)

For proper operation, the Status parameter must read OK. The parameter indicates:

  • The presence of input channels A, B, and their complements.
  • The status of communications to the External Encoder Module (if present).

When the Status changes to a faulted state, the Internal Count is held at its last value until the Status returns to an OK state. If the fault clears, the Status will immediately return to OK (i.e., fault conditions are NOT latched).

For critical or sensitive applications, a drive.web connection may be made from the Status parameter to logic designed to handle a faulted encoder.

Possible causes for Fault on A, Fault on B Faults on A and B are shown below:

  • Short circuit between input channels.
    enc_short_circuit
  • Open circuit on the input channels.
  • Low Input Differential Voltage

    -10 V < Common Mode Voltage < 13.2 V

    enc_cmv_low

    | Differential Voltage | < 275 to 475 mV
    enc_diff_voltage

    The CH2 signal going high results in the Status parameter changing to a faulted condition.

  • Outside Common-Mode Voltage Range

    Common Mode Voltage < -10 V or 13.2 V < Common Mode Voltage

    enc_cmv_high

    The CH3 signal going high results in the Status parameter changing to a faulted condition.

If the Status parameter indicates a Comms Fault, there may be extreme radio frequency (RF) noise coupling to your smarty2 I2I signal wires, a wiring fault, or a hardware fault. Check for proper shielding and routing of cabling.


0 = OK
1 = Fault on A
2 = Fault on B
3 = Fault on A and B
4 = Comms Fault
Output Output, Read-only, Analog (signed 16-bit integer)
0.00 % to 100.00 %

The Output parameter is generated from the 64-bit Internal Count as follows:

Output % = [ Internal Count / Cycle Length ] * 100

Direction Output, Read-only, Boolean (signed 16-bit integer)

The Direction parameter indicates the relationship of encoder channel A with respect to encoder channel B. To invert the behavior of the Direction parameter, swap channel A and -A at the input terminals.


0 = Forward
1 = Reverse
Cycle Length 0 Internal Parameter, Read-write, Hexadecimal (unsigned 16-bit integer)
0 to 65535

Least significant 16-bits of the 64-bit Cycle Length. Concatenate the hexadecimal values to determine the total length.

Cycle Length = Cycle Length 3 | Cycle Length 2 |Cycle Length 1 | Cycle Length 0

For example, 0x0000 0x0BA8 0x9DE7 0x3694 = 12,818,831,586,964.


Cycle Length 1 Internal Parameter, Read-write, Hexadecimal (unsigned 16-bit integer)
0 to 65535

Most, least significant 16-bits of the 64-bit Cycle Length. Concatenate the hexadecimal values to determine the total Length.

Cycle Length = Cycle Length 3 |Cycle Length 2 | Cycle Length 1 | Cycle Length 0

For example, 0x0000 0x0BA8 0x9DE7 0x3694 = 12,818,831,586,964.


Cycle Length 2 Internal Parameter, Read-write, Hexadecimal (unsigned 16-bit integer)
0 to 65535

Least, most significant 16-bits of the 64-bit Cycle Length. Concatenate the hexadecimal values to determine the total Cycle Length.

Cycle Length = Cycle Length 3 | Cycle Length 2 | Cycle Length 1 | Cycle Length 0

For example, 0x0000 0x0BA8 0x9DE7 0x3694 = 12,818,831,586,964.


Cycle Length 3 Internal Parameter, Read-write, Hexadecimal (unsigned 16-bit integer)
0 to 65535

Most significant 16-bits of the 64-bit Cycle Length. Concatenate the hexadecimal values to determine the total Cycle Length.

Cycle Length = Cycle Length 3 | Cycle Length 2 | Cycle Length 1 | Cycle Length 0

For example, 0x0000 0x0BA8 0x9DE7 0x3694 = 12,818,831,586,964.
