drive.web
Modbus RTU Master
Holding Register Unsigned Integer 16-Bit
|
| Holding Register Unsigned Integer 16-Bit | When the data obtained from the slave device is a unsigned 16-bit integer (Range= 0 to 65535), the Holding Register UINT16 should be used. |

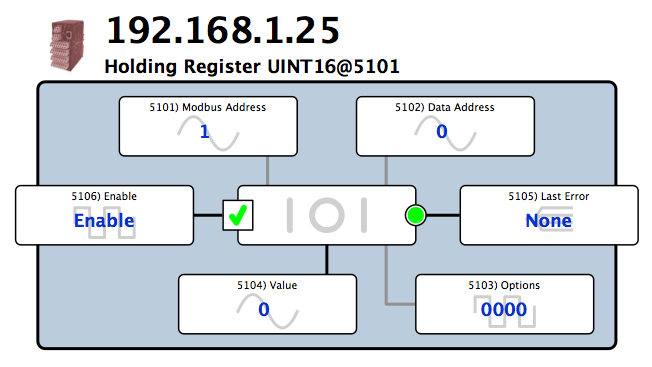

| SFD Level |  |
| Internals |  |
| Modbus Address | The Modbus RTU address of the slave device on the EIA-485 network (Range= 1 to 247). |
| Data Address | The Holding Register's offset address in the slave device. Typically, one less than specified Modbus RTU Address (e.g., to poll the data at Holding Register 40108 set the Data Address to 107). |

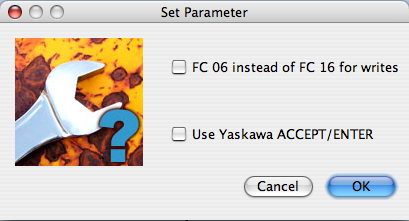

| Options |
The Options parameter can be used to change the properties of the write command if required by the slave device. Use Function Code 06 instead of Function Code 16 for writes. Check this option for the ODP and ODV products. Use Yaskawa ACCEPT/ENTER. This option must be checked for Yaskawa products. |
| Value | The data either read from, or to be written to, the associated data address in the slave device. The Re-Name and Re-Scale contextual menu items can be use to make the raw data more meaningful in savvy. |
| Last Error | The result of the last poll of the associated data address in the slave. The Last Error code can be individually cleared by clicking on this parameter and using the Reset pushbutton. |
| Enable | Can be used to enable/disable the polling of the associated data address in the slave. |
