To upgrade Savvy, select ’ÄòUpgrade Savvy...’Äô from the 'Commerce' menu.
savvy-SFD - Price US$198
This option enables the following features in the display of the function blocks for each drive.web smarty or speedy module:
- Function blocks can be arranged logically in the device FBE window
- Drag 'n' drop connections between parameters are shown by lines
- Connection lines layout can be organized and optimized
- Multiple page drawing organization for complex configurations
- Automatic referencing for page to page and unit to unit connections
- Graphical configurations can be edited and printed for great system documentation
- Old non-graphical configurations can be imported and edited
- Drawings can be annotated to provide better system information
- Choice of ANSI or ISO drawing sizes and border formats
- Selectable "snap to grid" drawing feature
Example

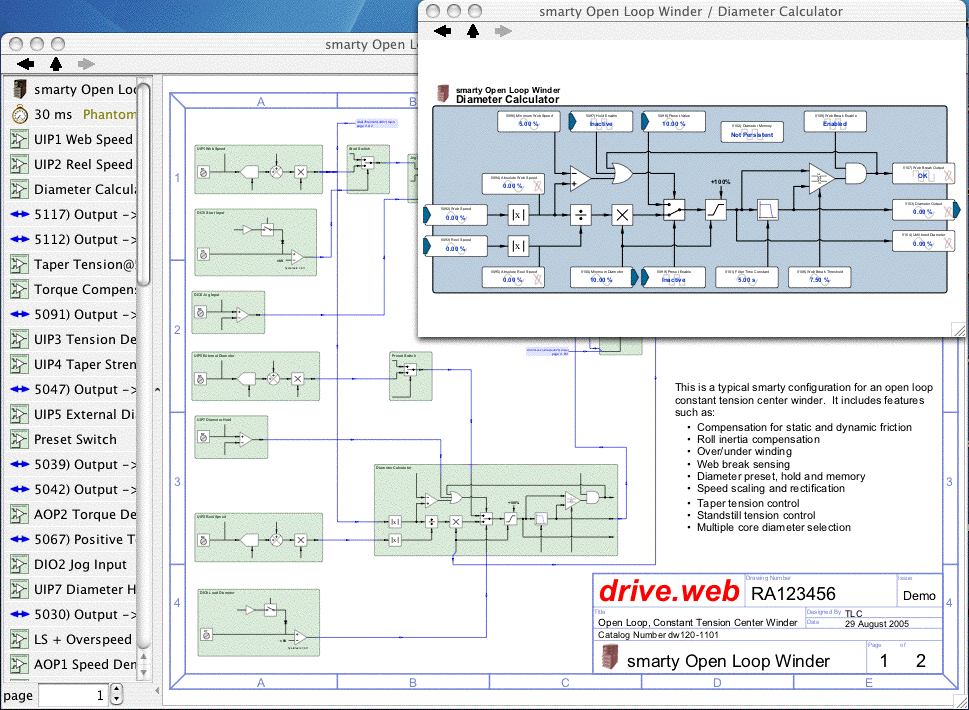

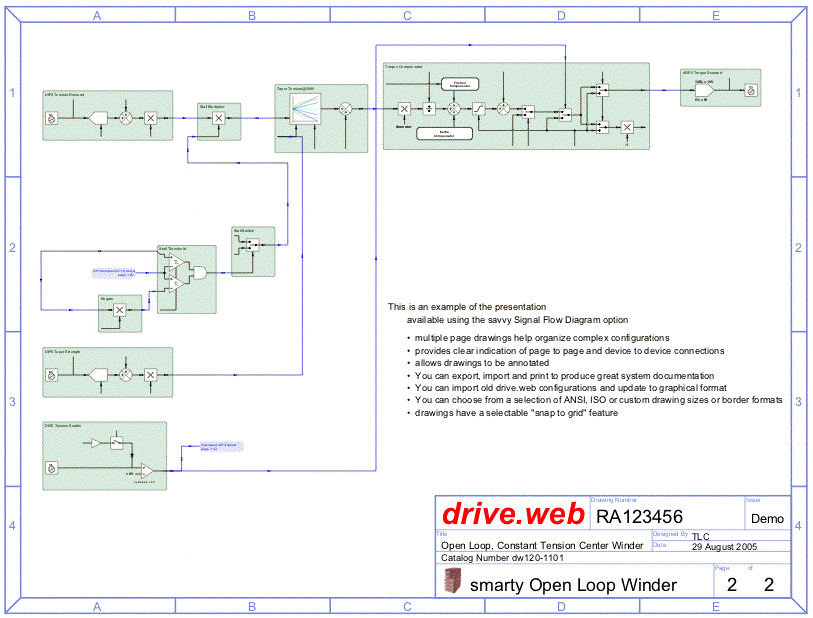

Here is an example of how a basic open loop winder system might appear in a graphical signal flow diagram format:
