I/O

T32 Analog Input
Description (description coming soon)
Availability
  • Requires library: System & I/O
  • Requires hardware: Analog and Digital I/O
  • Singleton function block
  • Firmware versions 0x2000 and later
savvy-SFD Graphic ainT32

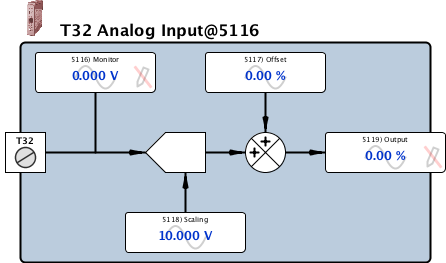

Graphic with Parameters ainT32

Parameters

Monitor Output, Read-only, Analog (signed 16-bit integer)
-32.77 V to 32.77 V
-32767 = Under-Range
32767 = Over-Range
Offset Input, Read-write, Analog (signed 16-bit integer)
-327.67 % to 327.67 %
Scaler Input, Read-write, Analog (signed 16-bit integer)
-32.767 to 32.767
Output Output, Read-only, Analog (signed 16-bit integer)
-327.7 % to 327.7 %
